1790s Gown 3

I'm unusually busy at the moment, and will be for at least the next two months, so a very quick post of pictures of the gown will have to do for now.  I'll spend more time on the garment construction later.

Three photos below courtesy of Julie Rockhold:

I bustled the back of the gown so I could dance!

Pictures were taken at the Gadsby Tavern's Jane Austen Ball.

Wednesday, August 3, 2011


I can say that I am SO glad I have a machine which does embroidery.  The whole process is certainly complicated, but it only takes two weeks to do a massive quantity of work.
It all starts with a sketch.  This helps me to layout the size and decide how the designs need to be broken apart to fit in the hoops.

From there I'll take tracing paper and make nice ink drawings with all the details.  The lines on this one show where the design will extend past the hoop, so it will need to be separated somewhere.

I scan it into the computer and Photoshop solid colors into the areas, no borderlines.  The colors have to be a bit extreme for the embroidery program to recognize the differences easily.

I'm still not sure I have a full grasp of the program, but I can get it to do most of what I need.  Once the image is placed in the program it adjusts it based on the number of colors you say you want (helpful if you're doing a photograph, etc).  Then I just click on each color section to turn it into embroidery.  This has to be done in order, with separate colors so it will tell you when switch threads.  I used a satin stitch, the stitch angles were all changed to correspond with the original.

I can either test out the embroidery using cheaper threads (which I did to almost all of the designs) or print off the pattern to give me placement marks.  This is what I called a connecting piece.  It's what went between the major designs and had to be adjusted into four different designs in order to match up at the right angle.  Testing both sides four times each would have been more than necessary, so I just printed.
You can see how the long feathers are actually broken up into sections.  This is to allow me to gradually adjust the stitch angle to have it follow the curve.

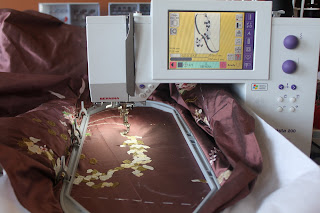

Some of my designs I marked with thread for hoop placement.  The connection pieces were more adjustable, so I would chalk in the shape and find where the marks needed to sit to match up the design, then just chalk in the placement marks.  They didn't have to last very long.  I would make a few final adjustments on the machine.  Some were to move the design into the exact place.  I also adjusted some of the other numbers to give the right effect.  I set the stitch fill to 90%, told it to adjust by .2 mm over the edges (they say it's for pull compensation, I use it to get rid of spaces between small designs), and set the maximum stitch length to 8mm.

I used mostly silk thread:
Light pink: Clover 036 (sz 50)
Mdm pink: Clover 037
Dark pink: Clover 055
Beige:  Clover 043
Green: YLI 220
Lt Green: YLI 218
Gold: YLI 239 Silk Sparkle
Silver: YLI 224 "
Bronze: YLI 223 "
